1 Product name:Dental Electric Suction Machine

2 Product description: The negative pressure equipment is composed of suction machine, filter, valve,

pipeline and other parts.

3 Intended use: It is used to provide a negative pressure source for dental treatment equipment to

achieve the attractive function.

4 Applicable people: adults and children.

5 Contraindications: None

6 Expiration date:5 year

Product Introduction

The electric suction machine is novel in shape, excellent in quality, easy to control, and easy to move. It

is suitable for treatment in hospital stomatology, dental clinic, and community dental clinic.

It can be used to suck droplets, aerosols, etc. At the same time, it can also kill bacteria and viruses,

eliminate air odors, remove smog and keep the air fresh.It is used for supplementary treatment in the

stomatology department of medical institutions or to eliminate viruses in public areas to remove odors.

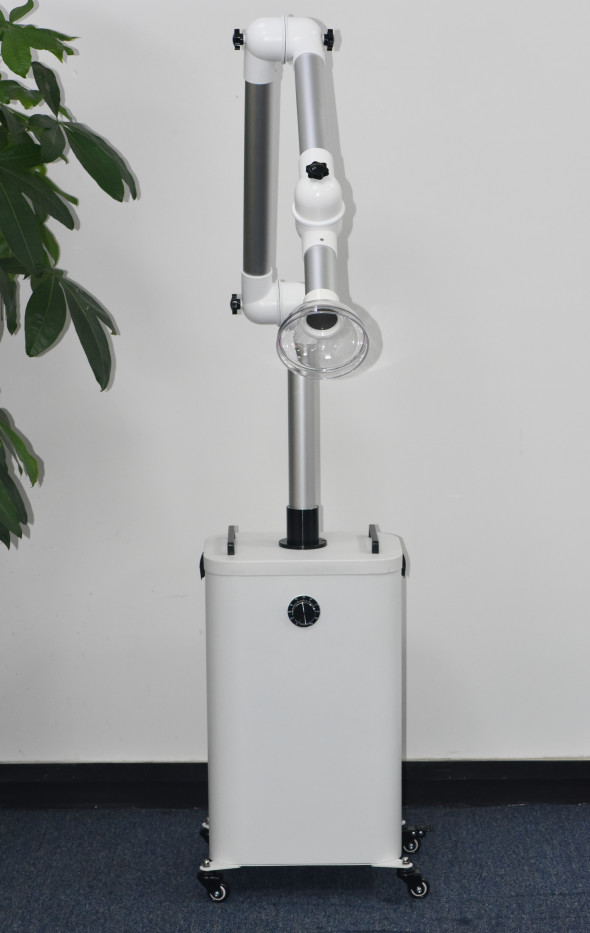

The electric suction machine is composed of metal outer box, suction fan, control circuit, rotating arm,

Primary water vapor filter + Secondary water vapor filter+HEPA high efficiency filter+Activated carbon

filter, plasma sterilizer and UV disinfection lamp. The structure is shown in Figure

Technical parameters(Other configurations are negotiated by the supplier and the buyer)

Power supply:AC220V 50/60Hz or 110V 50/60Hz

Power:700W

Fuse:T10AL 250V

Fan parameters

a) Maximum Negative pressure flow:500m³/h,3000Pa

b)Maximum Input:DC310V 1.2A

c)Maximum speed:5500rpm

UV lamp parameters

a)Input voltage:AC200V

b)Rated power:6W

Plasma generator parameters

a)Input voltage:AC220V

b)Output high voltage:±5000V±500V

c)Positive ion concentration:10x106

pcs/cm3

d)Anion concentration:10x106

pcs/cm3
