1 Product name:Dental Electric Suction Machine
2 Product description: The negative pressure equipment is composed
of suction machine, filter, valve,
pipeline and other parts.
3 Intended use: It is used to provide a negative pressure source
for dental treatment equipment to
achieve the attractive function.
4 Applicable people: adults and children.
5 Contraindications: None
6 Expiration date:5 year
Product Introduction
The electric suction machine is novel in shape, excellent in
quality, easy to control, and easy to move. It
is suitable for treatment in hospital stomatology, dental clinic,
and community dental clinic.
It can be used to suck droplets, aerosols, etc. At the same time,
it can also kill bacteria and viruses,
eliminate air odors, remove smog and keep the air fresh.It is used
for supplementary treatment in the
stomatology department of medical institutions or to eliminate
viruses in public areas to remove odors.

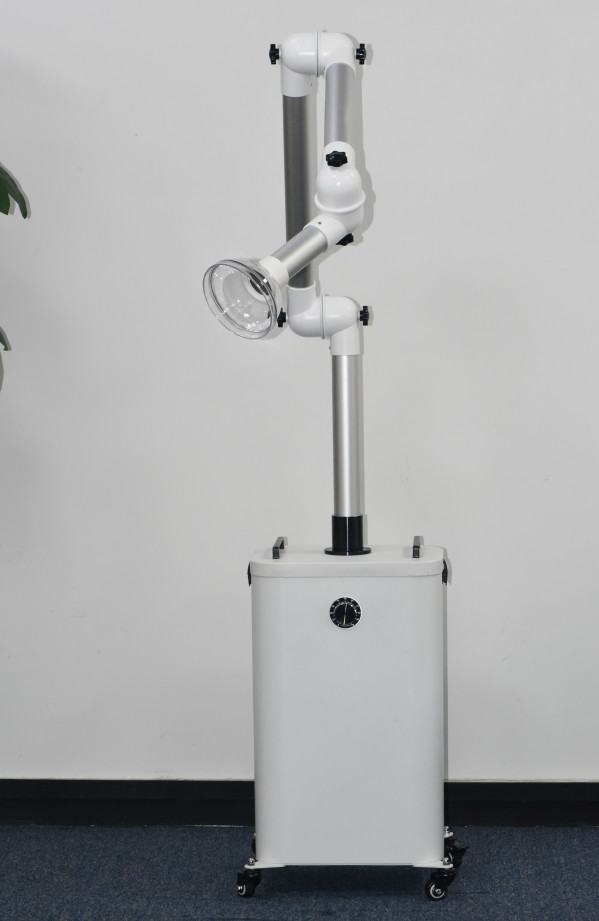

The electric suction machine is composed of metal outer box,
suction fan, control circuit, rotating arm,
Primary water vapor filter + Secondary water vapor filter+HEPA high
efficiency filter+Activated carbon
filter, plasma sterilizer and UV disinfection lamp. The structure
is shown in Figure
Technical parameters(Other configurations are negotiated by the supplier and the buyer)
| Power supply | AC220V 50/60Hz or 110V 50/60Hz |
| Power | 700W |
| Fuse | T10AL 250V |
Fan parameters
a) Maximum Negative pressure flow:500m³/h,3000Pa
b)Maximum Input:DC310V 1.2A
c)Maximum speed:5500rpm
UV lamp parameters
a)Input voltage:AC200V
b)Rated power:6W
Plasma generator parameters
a)Input voltage:AC220V
b)Output high voltage:±5000V±500V
c)Positive ion concentration:10x106
pcs/cm3
d)Anion concentration:10x106
pcs/cm3
Noise:≤60dB
Motor control method: knob adjustment
Filtration:Four-stage layers of filtration
Disinfection: Built-in ultraviolet disinfection and plasma
disinfection
Suction arm: 4-step universal adjustment
Diameter of fan housing:140mm
Diameter of rotating arm pipeline: 50mm
Total length of rotating arm:1600mm(Maximum length of lateral
extension: 1200mm)
Size of machine:360*230*640mm
Package size:470*450*700mm
Net weight:16.5kg
Gross weight:21kg
