Specifications

Normal working conditions

a). Surroundings temperature: 10°C~30°C;

b). Relative humidity: ≤70%;

c). Atmospheric pressure: 700hPa~1060hPa;

d). Voltage of electrical source: 220V±10V;

e). Frequency of electrical source: 50Hz±1Hz.

Surroundings of transportation and reservation

a). Surroundings temperature range: -40°C~+55°C;

b). Relative humidity range: ≤93%

c). Atmospheric pressure range: 500hPa~1060hPa.

Performance

(1). Processing time of film

The time which develops films needed is 2min~8min, and can be accommodated continuously. The error is within±10%.

(2). Light leaking

During the bathing process, light leaking is not permitted.

(3) The stability of film delivery

The delivery mechanism of film should not lacerate or lock films.

(4) The timing panel of transit film

The timing panel of transit film adopts the number 1~12 represents month, each scale represents 10 days.

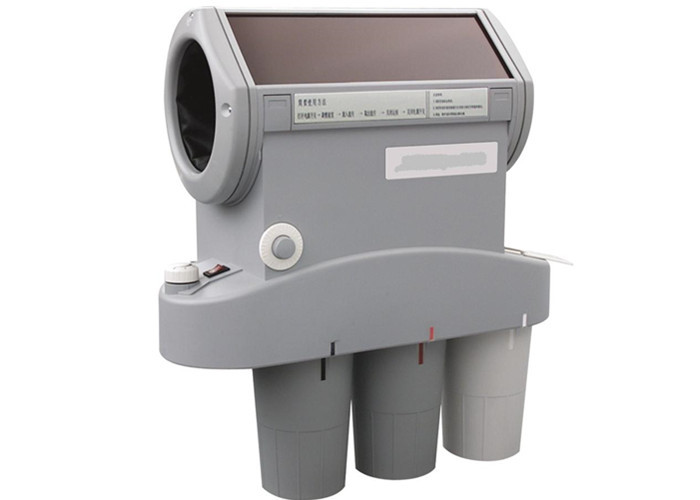

The product structure

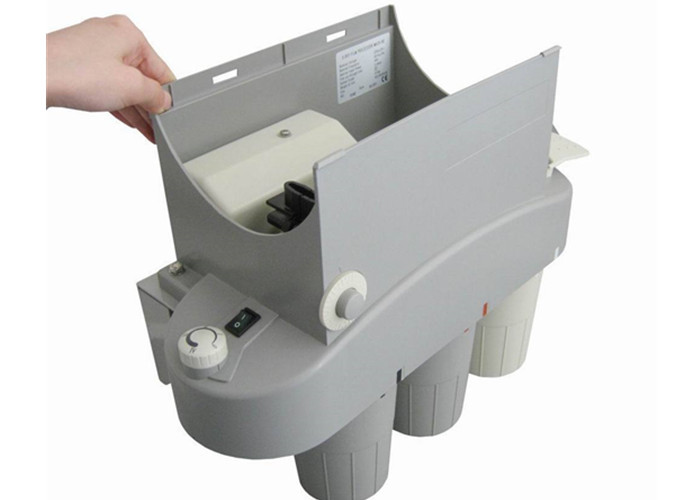

It is composed of Main body , Light-tight box, Delivery mechanism of film, Liquid cup and Screen and so on.

Input power: 4VA.

Safety requirement

It accords with electric equipment safety regulation of the B type in species in the national standards GB9706.1.

Wiring diagram of electric machine

How to order
1.Please send us your order list with model number and quantity;
2.We will make a Proforma invoice for your order.
3.We will deliver the product ASAP on receipt of the payment, then will inform you the tracking number.

Extra Service
1. Sample order is available.
2. Offer Customized and OEM service

Guarantee
We offer 1year warranty for most equipments.


Payment
1. Telegraphic transfer (TT)
2. Western Union/Money Gram
3. Paypal
4. Escrow by Alibaba
5. L/C

Shipment
1. Small order via DHL, Fedex, TNT, EMS ( fast and safe)
2. Big order by sea ( Cheap and safe)

After-sale service
1. Warranty policy: 1year warranty for most equipments.
2. Replacement spare parts can be sent with new orders in case of broken.
3. Follow the full process until the goods arrivals.
